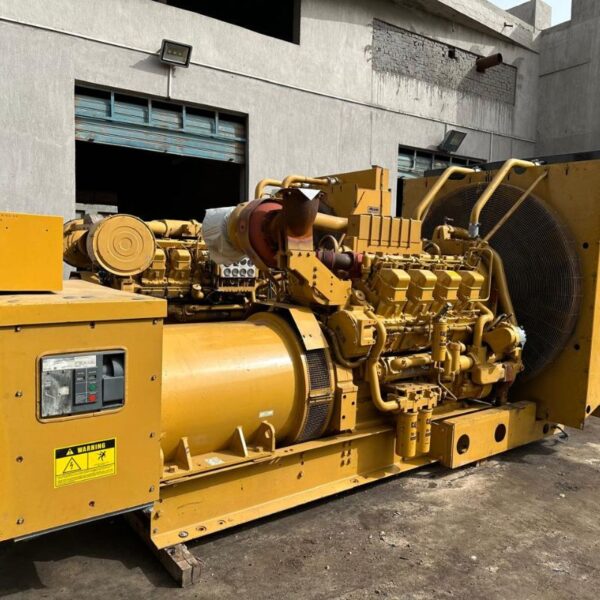

Cat 3508 ,1000 kw ,60 hz ,480 v Generator Sets
| Cat 3508 ,1000 kw ,60 hz ,480 v Generator Sets | |
| MODEL | 3508 |
| RATING | |
| 1250 | KVA |
| 1000 | KW |
| 0.8 | COS |
| 60 | HERTZ |
| STANDBY | XXX |
CLASS F INSULATION
Description
Cat 3508 ,1000 kw ,60 hz ,480 v , 1000 h since new Highly efficient generator
Cat 3508 ,1000 kw ,60 hz ,480 v Generator Sets
| Cat 3508 ,1000 kw ,60 hz ,480 v Generator Sets | |
| MODEL | 3508 |
| RATING | |
| 1250 | KVA |
| 1000 | KW |
| 0.8 | COS |
| 60 | HERTZ |
| STANDBY | XXX |
| GENERATOR DATA | |
| 3 PHASE | 10 WIRE |
| XX | WYE |
| CONNECTION | XXX SERIES |
| GENERATOR | 480 VOLTS / 1504 AMPS |
| EXCITATION | 40 VOLTS / 9.4 AMPS |
| 880 | FRAME |
| 1800 | REV/MIN |
| MAXIMUM TEMPERATURE RISE | 130 °C BY RESISTANCE |
| FULL LOAD STATIC FUEL | 17.9 |
| FULL TORQ. STATIC FUEL | 17.9 |
| POWER | 1456 HP / 1086 KW |
| BARE ENG. HI IDLE RPM | 1818 |
| FULL LOAD RPM | 1800 |
| FUEL TIMING | 86.20 |
| MARINE PROPULSION |
| OIL AND GAS |
| MARINE POWER |
