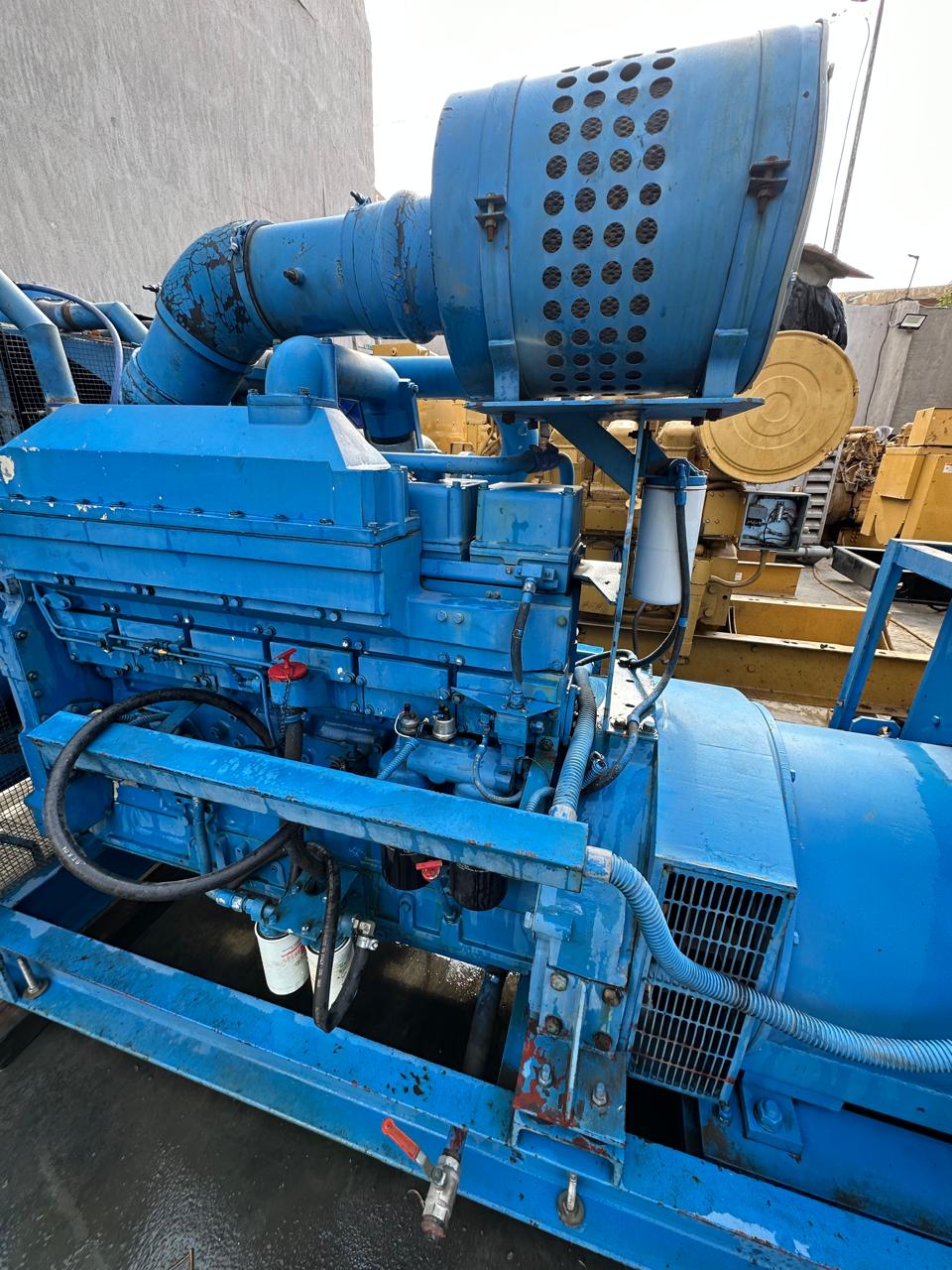

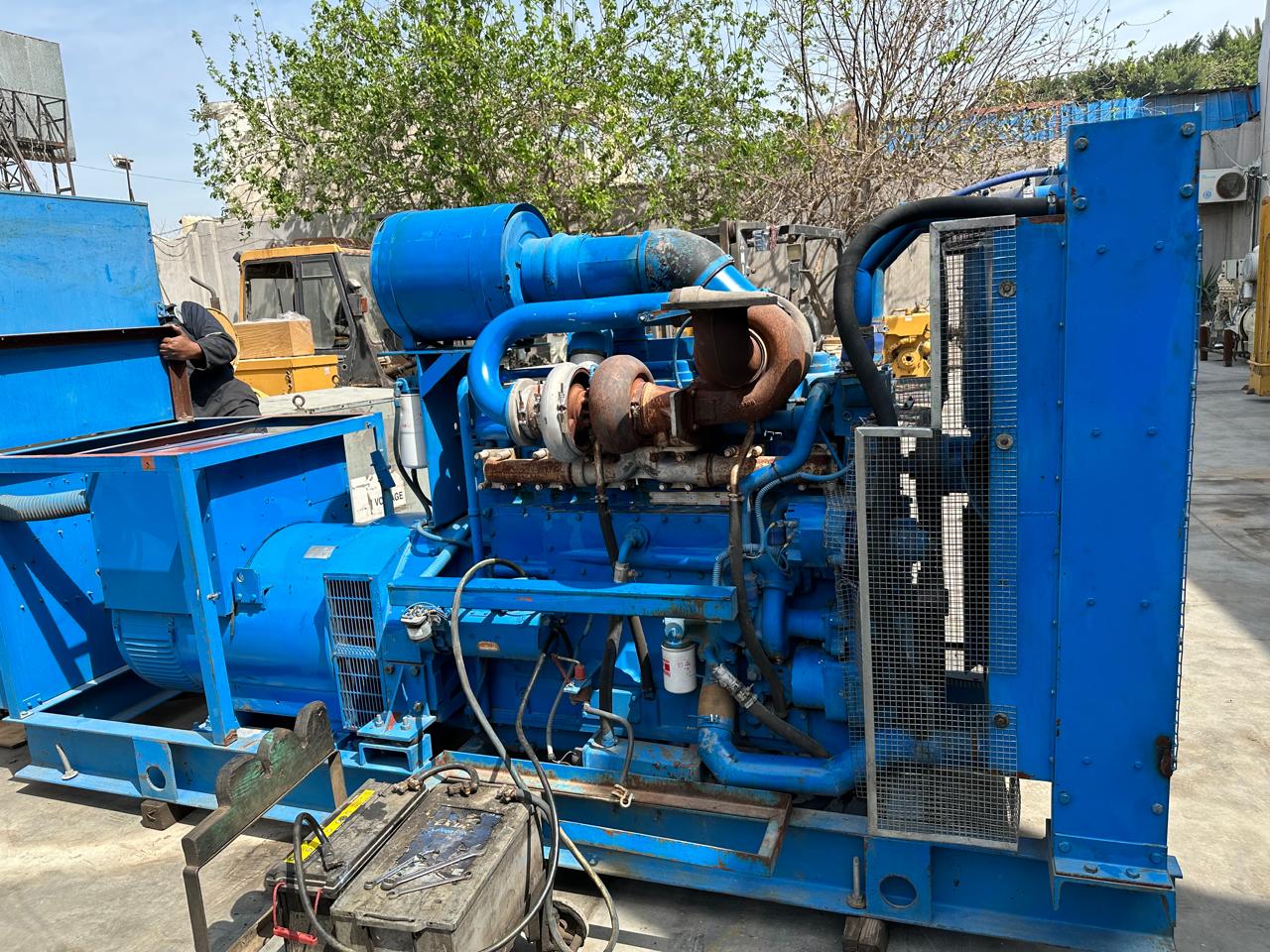

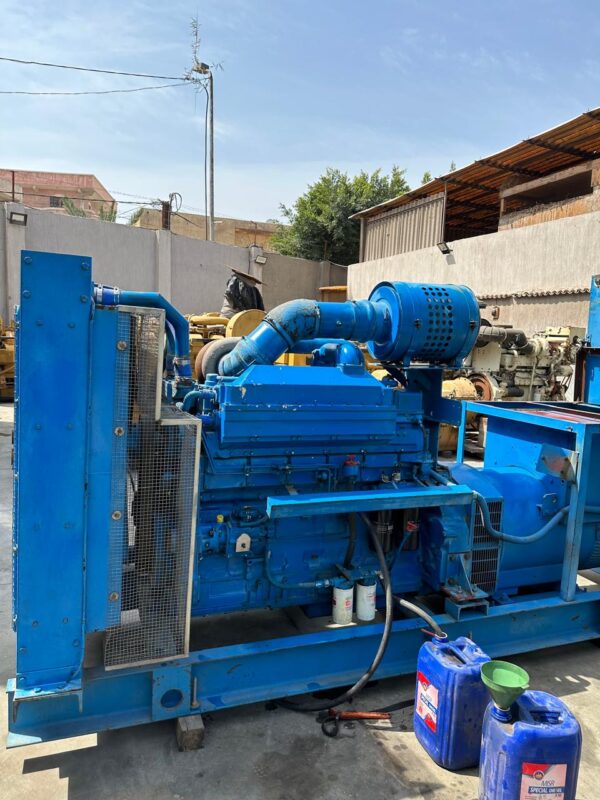

Cummins KTA19-500-KVA Generator Sets
| Cummins KTA19-500-KVA Generator Set Specification | |
| Model | C500D5P |
| Duty | Prime |
| RUNNING HOURS | 1000 HR |
| Power Rating kVA/kWe | 500/400 |
| No. of Phases | 3 |
| Output Voltage and Frequency (V and Hz) | 415 V, 50 Hz |
| Power Factor | 0.8 (lagging) |
| Current (A) | 695 |
| RPM | 1500 |
Description
CUMMINS KTA19-500-KVA
More info
| Generator Set | |
| Model | C500D5P |
| Duty | Prime |
| Power Rating | 500 KVA /400 KW |
| No. of Phases | 3 |
| Output Voltage and Frequency (V and Hz) | 415 V, 50 Hz |
| Power Factor | 0.8 (lagging) |
| Current (A) | 695 |
| RPM | 1500 |
| Engine Specification | |
| Make | Cummins |
| Model | KTA19 |
| MoEF Certified Power (hp) | 587 |
| Required Power for Rated KVA (hp) | 587 |
| Cooling | Liquid Cooled (EG Compleat 50:50) |
| Aspiration | Turbocharged, Charge Air Cooled |
| No. of cylinders | 6, In-line |
| Bore (mm) x Stroke (mm) | 159 x 159 |
| Compression ratio | 16.7:1 |
| Displacement (liters) | 19 |
| Fuel | High Speed Diesel |
| Fuel consumption @75% load with radiator and fan (liters/hr) | 79.83 |
| Fuel consumption @100% load with radiator and fan (liters/hr) | 103.64 |
| Performance class of genset | ISO 8528-5 G2 |
| Starting system | 24 V DC Electrical |
| Lube oil specification | CH4 15W40 |
| Generator Set Specification | |
| Lube oil sump capacity, High-Low level (litre) | 38-32 |
| Total lubrication system capacity (litre) | 50 |
| Total coolant capacity (litre) | 85 |
| Exhaust pipe size (inch) | 10 |
| Total wet weight (Engine + Radiator) (Kg)** | 2300 |
| Length x Width x Height (Engine) (mm) | 1744 x 916 x 1402 |
| Mean piston speed (m/s) | 7.95 |
| Combustion air intake @100% load (±5%) (cfm) | 1278 |
| Exhaust Temperature (°C) | 464 |
| Alternator specification | |
| Make | Stanford (CGT) |
| Alternator frame | HCI544D |
| Enclosure | IP 23 |
| Voltage regulation (Max.) | ±1% |
| Class of Insulation | H Class |
| Winding Pitch | 2/3 |
| Stator Winding | Double layer lap |
| Rotor | Dynamically Balanced |
| Waveform distortion/Total Harmonic Distortion | No load < 1.5%, Non-distorting balanced linear load < 5% |
| Maximum Unbalanced Load across phases | less than or equal to 25% |
| Telephonic Harmonic factor | < 2% |
