FG Wilson Engine 80 HR since New open type
| FG Wilson Engine 80 HR since New open type / info | |
| GENERATING SET | ISO 8528 |
| MANUFACTURER | FG Wilson (Engineering) Ltd |
| MODEL | P605E2 |
| RUNNING HOURS | 80 HR |
| YEAR OF MANUFACTURE | 2010 |
| AMBIENT TEMP. | 27 °C |
| RATED POWER | |
| STANDBY | 605.0 KVA |
| 484.0 kW | |
Description

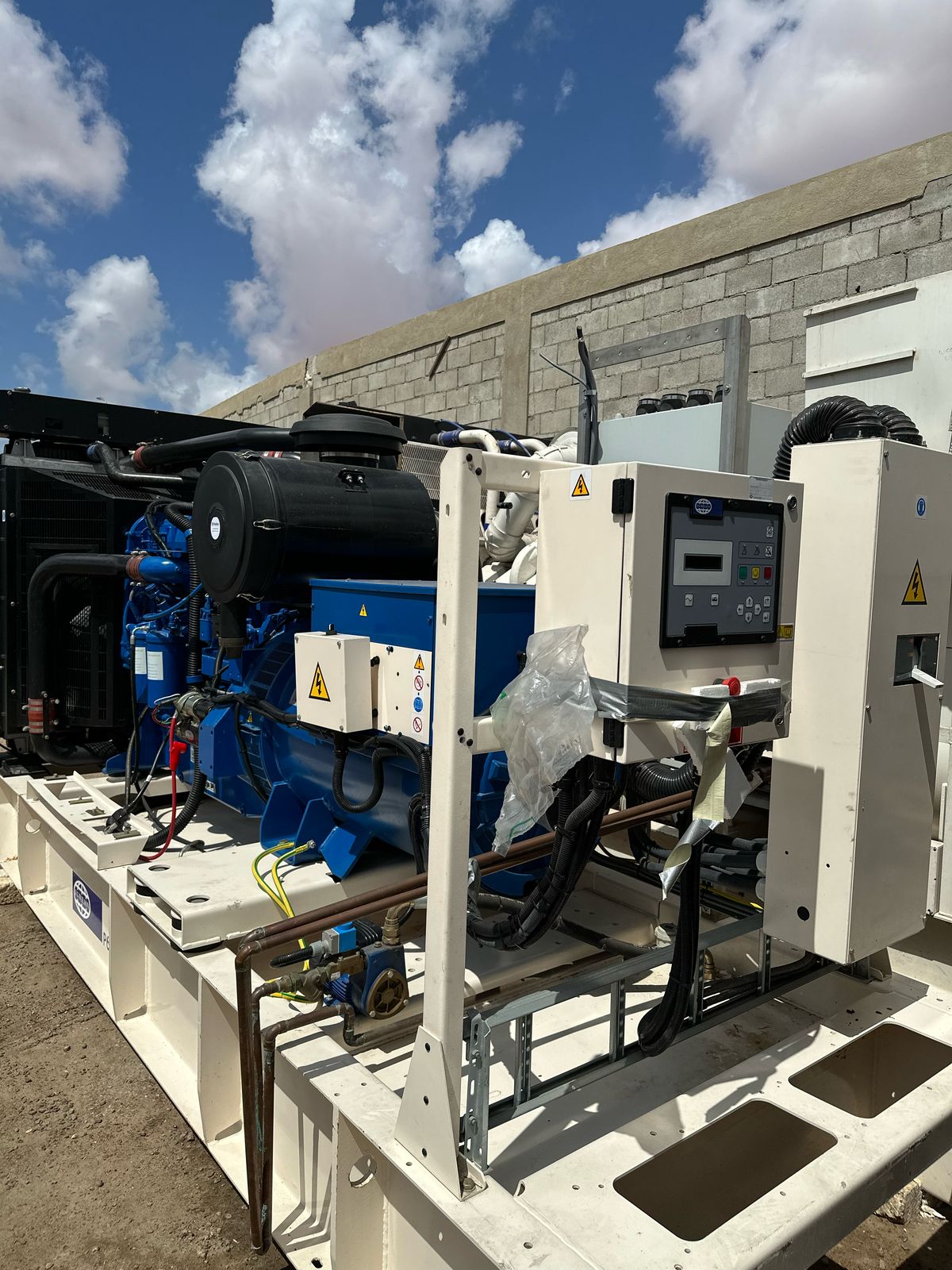

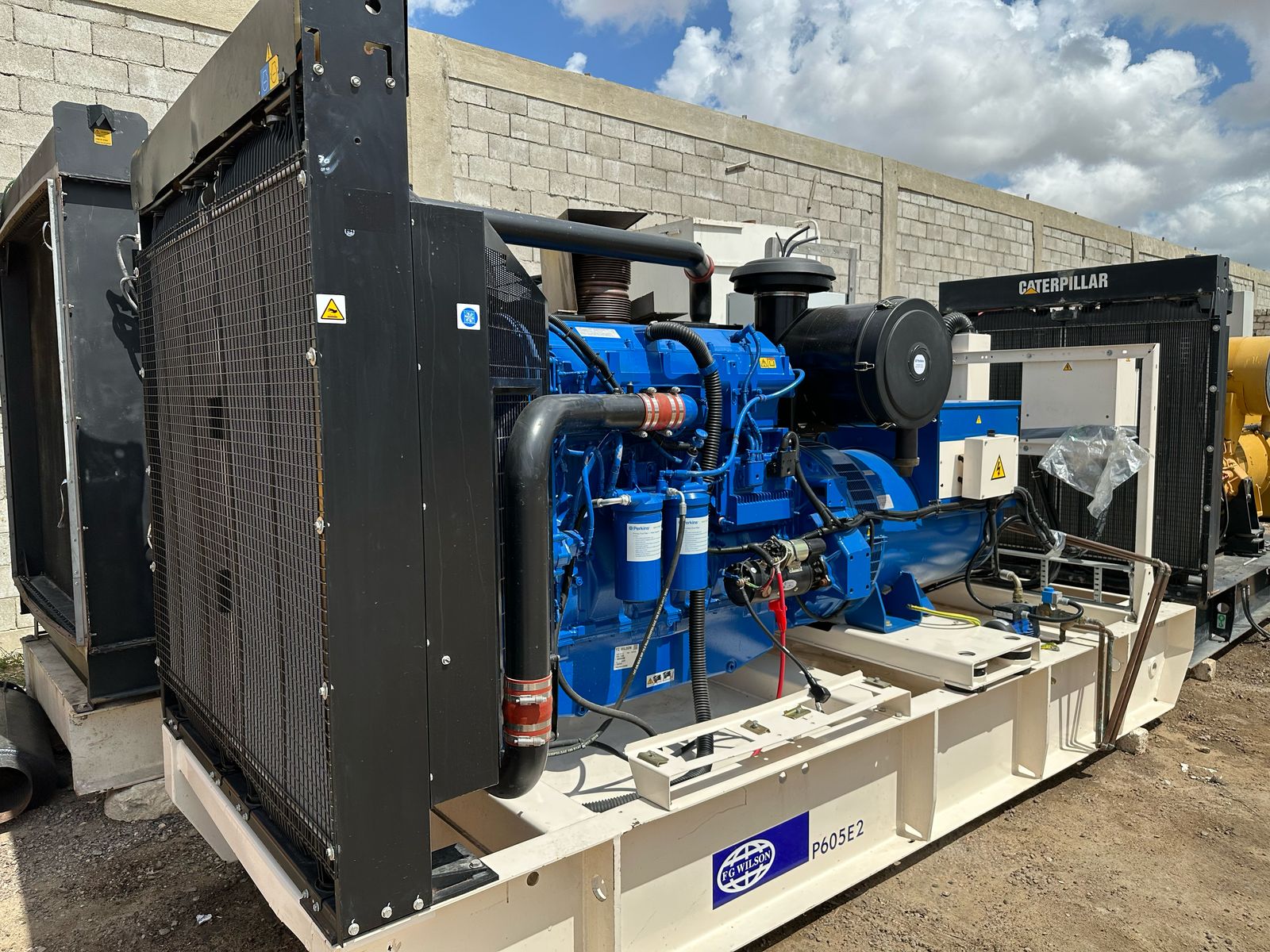

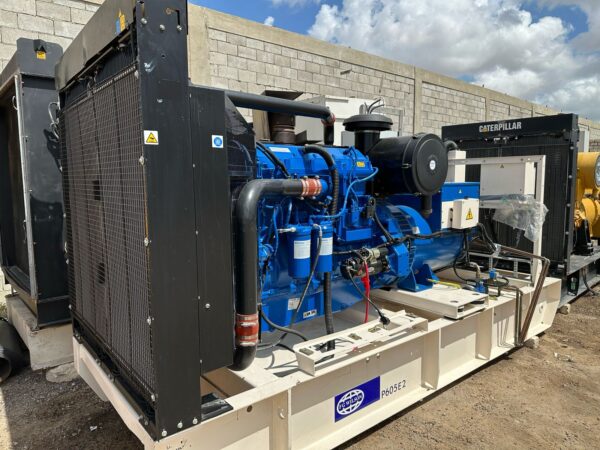

Like New FG Wilson 80 hour since New , Engine 2806C open Skid
FG Wilson 80 hour since New , Engine 2806C
| FG Wilson Engine 80 Hour since New open type / info | |
| GENERATING SET | ISO 8528 |
| MANUFACTURER | FG Wilson (Engineering) Ltd |
| MODEL | P605E2 |
| YEAR OF MANUFACTURE | 2010 |
| AMBIENT TEMP. | 27 °C |
| RATED POWER | |
| STANDBY | 605.0 KVA |
| 484.0 kW | |
| RATED VOLTAGE | 400/230 V |
| PHASE | 3 |
| RATED POWER FACTOR | 0.80 Cos |
| RATED FREQUENCY | 50 Hz |
| RATED CURRENT STANDBY | 873 A |
| RATED CURRENT PRIME | A |
| RATED RPM | 1500 rpm |
| ALTITUDE | 152.4 m |
| ALTERNATOR CONNECTION | S STAR |
| ISO 8528-3 RATING | PR 500H TL0.875 |
| ALTERNATOR ENCLOSURE | 23 IP |
| INSULATION CLASS | H |
| EXCITATION VOLTAGE | 38 V |
| EXCITATION CURRENT | 4 A |
| AVR | R450 |
| MASS | 4655 Kg |
| MARINE PROPULSION |
| MARINE POWER |
